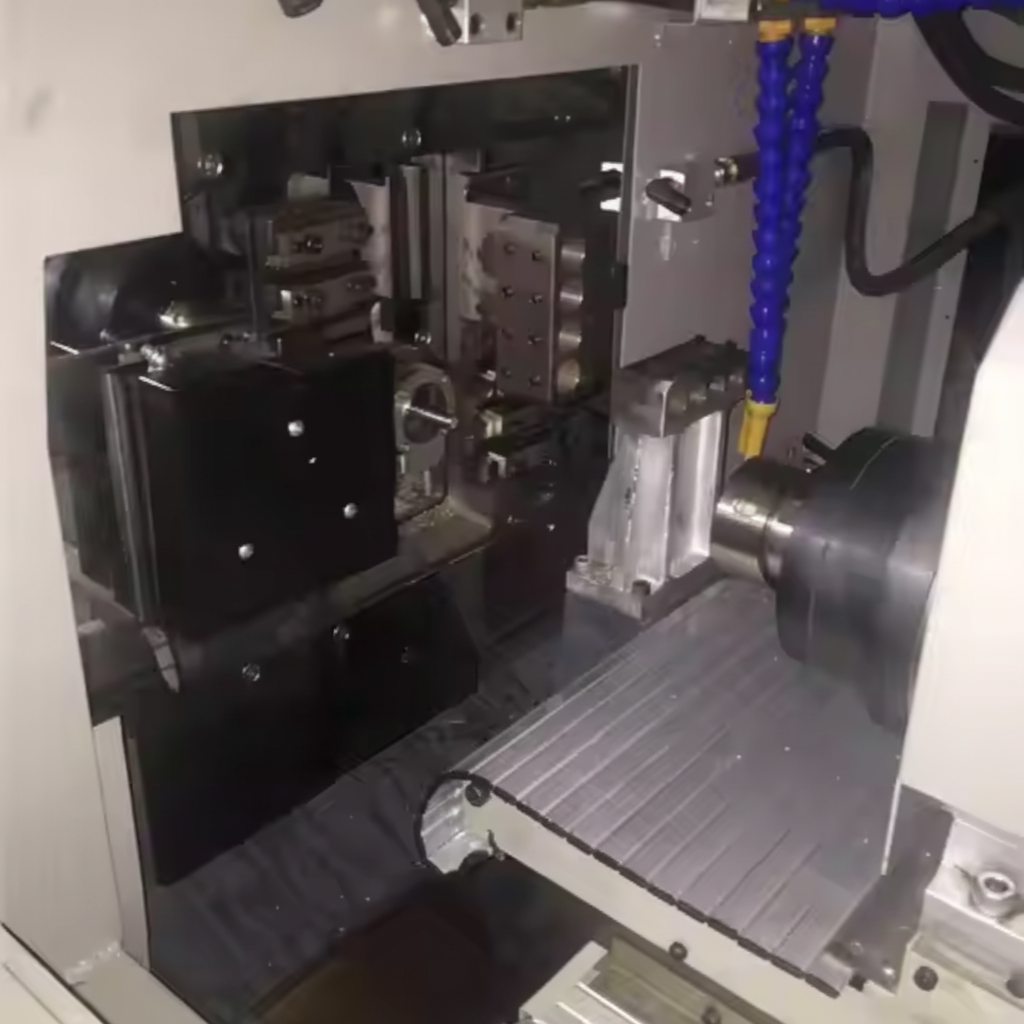

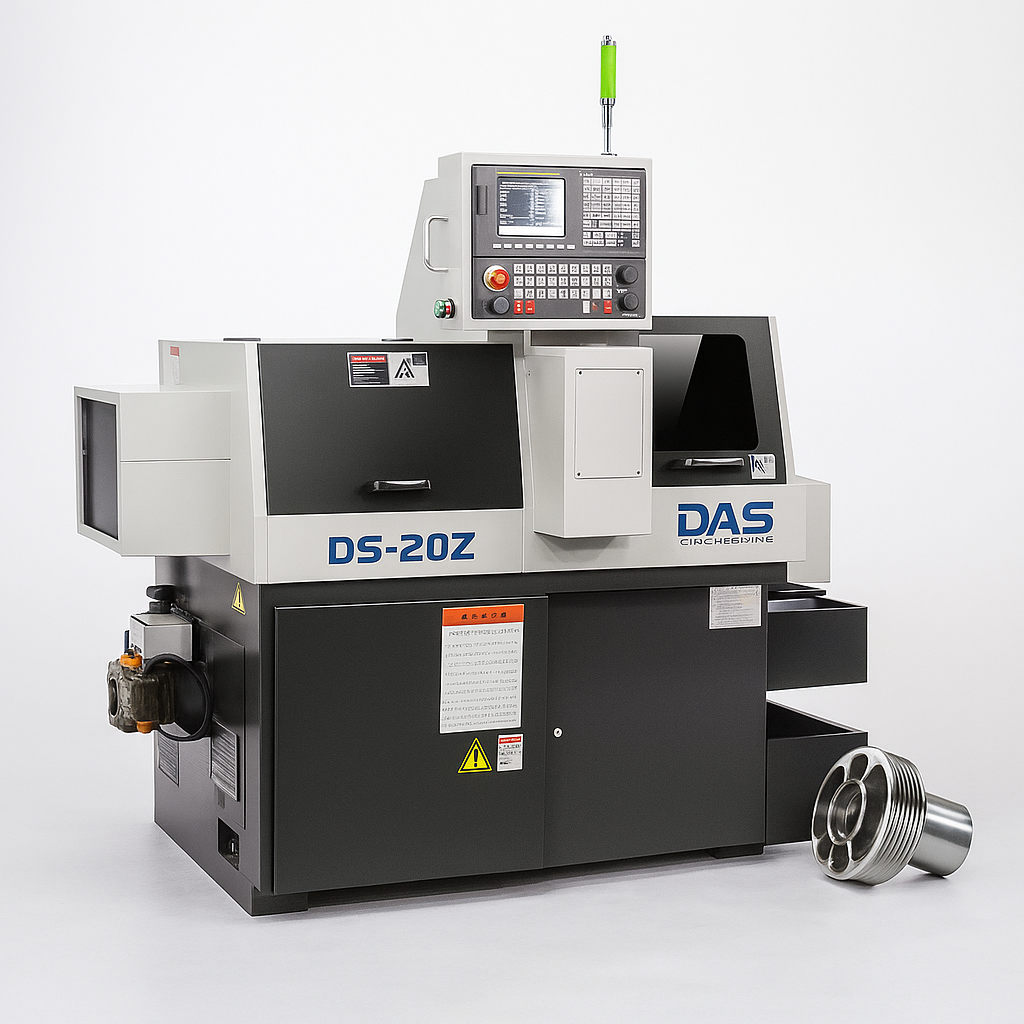

CirqeTech DS-20Z Compact CNC Turning Center

Production power in a space-saving frame. The CirqeTech DS-20Z packs high-speed turning capabilities into a compact footprint, perfect for bushings, pulleys, and precision shafts with low cycle times and simple setup.

Why Choose CirqeTech DS-20Z

• High-Speed 11 kW Spindle: 6,000 rpm with pneumatic chuck interface for fast, powerful cutting
• 10-Station Servo Turret: Quick-change tool holders for efficient production runs
• Compact Footprint: 1600 x 1200 x 1650 mm - fits in tight shop spaces
• Industrial CNC Control: USB, Ethernet, and macro B for advanced programming
• Automatic Parts Catcher: Eject chute for high-volume runs

Technical Specifications

• Spindle: 6,000 rpm, 11 kW, pneumatic chuck interface
• Travel: X-axis 200 mm, Z-axis 380 mm, rapid 24 m/min
• Turret: 10-station servo turret, quick-change tool holders
• Control: Industrial CNC with USB, Ethernet, and macro B
• Footprint: 1600 mm (L) x 1200 mm (W) x 1650 mm (H)
• Precision: 0.004 mm repeatability with thermal compensation

Perfect for High-Volume Production

• Production machine shops
• High-volume turning operations
• Precision shaft and bushing manufacturing
• Automotive and aerospace components
• Contract manufacturing

Production Features

• Enclosed Coolant System: Side-mounted tank with easy cleanout
• Operator Console: Full keypad, handwheel, USB job loading
• Parts Catcher: Automatic eject chute for high-volume runs
• Rigid Cast-Iron Base: Level pads for stability and vibration dampening
• Precision: 0.004 mm repeatability with thermal compensation
• Service Access: Wide doors and slide-out panels for easy maintenance

Warranty & Support

• Casting & Frame: 3-year warranty
• CNC, Drives & Motors: 18-month warranty
• Technical Support: Lifetime phone and email support
• Training: Operation and programming resources included

Ready for high-volume production? The CirqeTech DS-20Z delivers compact power and precision for production turning. Order now with confidence - backed by our 3-year frame warranty and lifetime technical support.
